Vatasa CORE-20LA Dual 10 Inch ACTIVE Line Array Speaker (piece)

Features:
Two-way single-drive line array speaker with symmetrical bass configuration

Symmetrical driver design for focused vocal imaging

High-sensitivity drivers provide greater sound pressure level and dynamic range.

Three-point hanging system simplifies installation and improves efficiency

Product Details

The CORE-20LA is a two-way, single-drive speaker system. It offers a
frequency range of 60Hz-20kHz (-10dB). It consists of a 100-core (voice
coil) 36-core compression tweeter and two 10-inch woofers, creating a
speaker system with a very high dynamic range.
The CORE-20LA’s low-frequency response uses two 300W 10-inch
paper cone woofers, operating in a parallel, symmetrical configuration.

Two cardioid phase plugs are mounted in front of the woofers to effectively improve directivity and greatly optimize mid-range interference.
The high-frequency response uses a 100-core (voice coil) titanium diaphragm
compression driver, combined with a plane wave converter and a
90-degree exponential curve constant directivity horn to produce a
consistent wavefront. With a high sensitivity of 99dB, theCORE-20LA
achieves a peak SPL output of up to 133dB.

The CORE-20LA features a trapezoidal cabinet, with each cabinet
adjustable from 0-10 degrees in 1-degree increments. The hanging
brackets are made of high-strength aluminum alloy in a single piece,
ensuring quick and efficient connection and safe hanging. When hanging
multiple speakers, the hanging brackets have a national standard safety
factor of 6:1. The cabinet is constructed of 15mm plywood with a
wear-resistant black polyurea paint finish. Each side of the speaker has

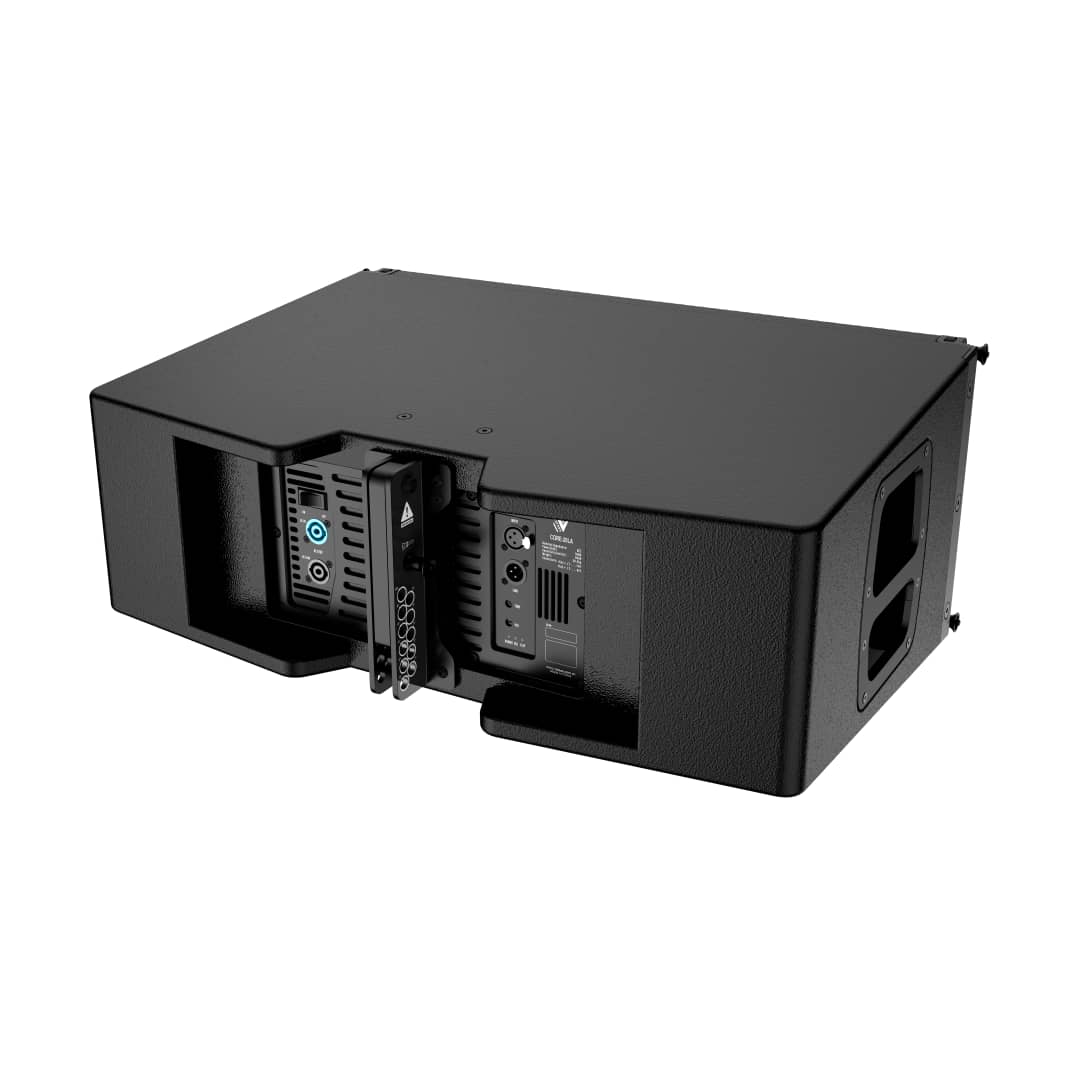

two ergonomic handles for safer handling, and the rear connection panel
has two NL-4 four-pin sockets. A black perforated wire mesh lining with
waterproof fabric protects the speaker drivers.

APPLICATION SCENARIOS
Music Festival Performances / Multi-purpose Halls /
Banquet Halls / Outdoor Plazas / Sports Venues
